HAOXING PRODUCT

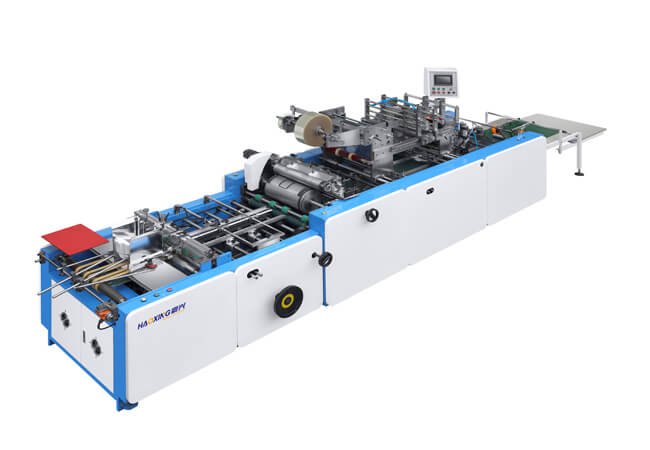

TC-1080A Corrugated Box Window Patching Machine
Product Overview
Punch and Crease Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.
Key features
Punch and Crease Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.
Technical Specifications
Model | | TC-1080A
Paper Gsm | | 200-1000 gsm
Capacity | | 5000 pcs/hour
Paper Size | | Min.190x150mm
Max.650x1080mm
Window Size | | Min.50x60mm
Max.380x400mm
Accuracy | | ±0.5mm
Film Thickness | | 0.10mm – 0.25mm
Total Power | | 9 kw
Machine Weight | | 3800kg
Machine Size | | 7000x1500x1600 mm
