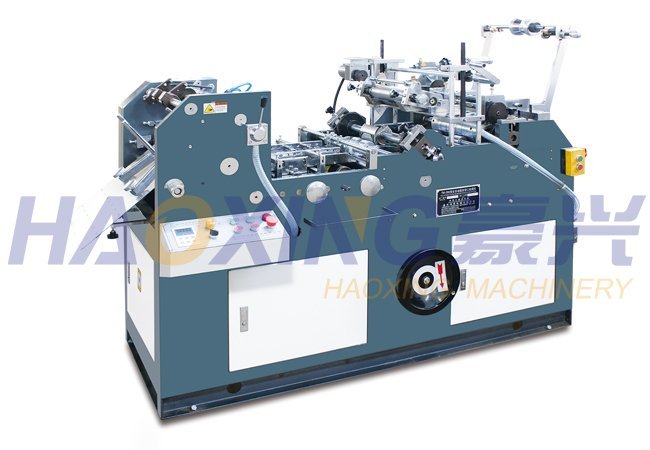

TM-390/A Envelope Window Patching Machine
Product Overview
Envelope window patching machine is used for applying film on the envelope window.
It includes air-suction paper feeding system, gluing system, window patching system, delivery system. With the developing for more than 10 years, this model machine is stable producing and easy setting.
Key features
It includes air-suction paper feeding system, gluing system, window patching system, delivery system. With the developing for more than 10 years, this model machine is stable producing and easy setting.
Technical Specifications
Model | | TM-390 | | TM-390A
Paper gsm | | 80-200gsm | | 80-180gsm
Capcity | | 5000-18000pcs/h | | 5000-18000pcs/h
Size ranges paper | | Min.90x100mm Max.350x380mm | | Min.110x175mm Max.500x600mm
Size ranges window | | Min.30x55mm Max.130x150mm | | Min60x80mm Max.300x 300mm
Connected load | | 3kw | | 4kw
Weight | | 1200KG | | 2000kg
Dimensions | | 2100x950x1100mm | | 2600x1050x1550mm
