HAOXING PRODUCT

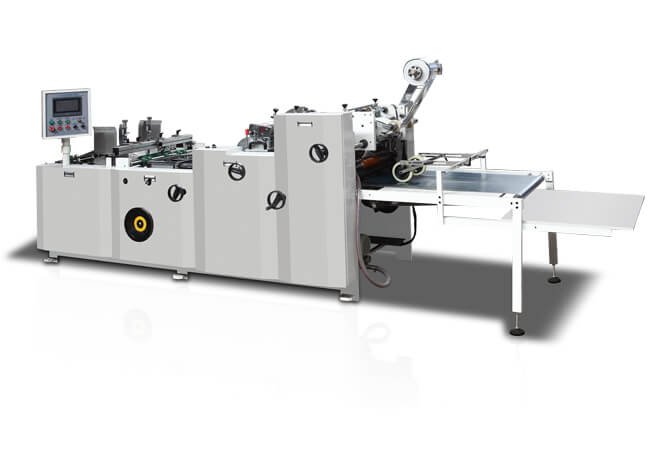

TC-650 Normal Window Patching Machine
Product Overview
Window Patching Machine is widely used for patching the window on the liquor box, gift box, tissue box, cosmetic box, toy box and so on.
Key features
Window Patching Machine is widely used for patching the window on the liquor box, gift box, tissue box, cosmetic box, toy box and so on.
Technical Specifications
Model | | TC-650
Paper weight | | 200-1000gsm
Capacity | | 12000 pcs/hour
Size range of paper | | Min.150x160mm
Max.560x650mm
Size range of window | | Min.30x50mm
Max.300x350mm
Film thickness | | 0.05-0.25mm
Total power | | 6.4 kw
Machine weight | | 2000kg
Machine size | | 4500x1200x1600mm
