HAOXING PRODUCT

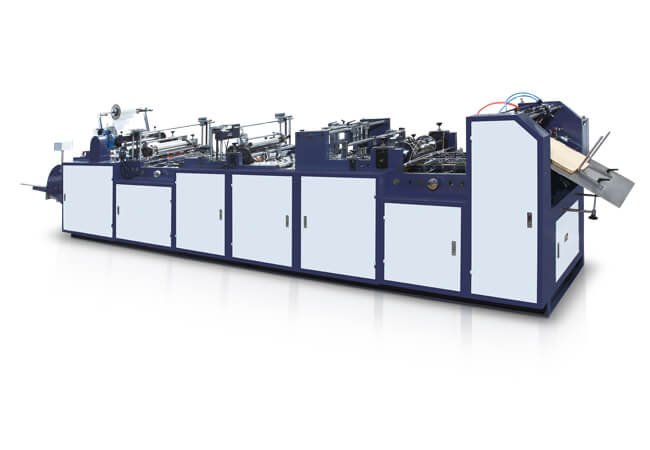

ZF-480/A Peel and Seal Wallet Pocket Envelope Making Machine
Product Overview
ZF-480 Automatic Self Seal Envelope making Machine Envelope machine is specially designed for producing Pocket and Wallet envelopes with peel and seal tape.
It includes air-suction paper feeding system, folding system, gluing system, tape system, counting system and delivery system. With the developing for more than 10 years, this model machine is stable producing and easy setting.
Key features
It includes air-suction paper feeding system, folding system, gluing system, tape system, counting system and delivery system. With the developing for more than 10 years, this model machine is stable producing and easy setting.
Technical Specifications
Model | | ZF-480 | | ZF-480A
Paper Gsm | | 70-150 gsm | | 70-150 gsm
Capacity | | 3000-10000 pcs/hour | | 3000-8000 pcs/hour
Size Ranges Envelopes | | Pocket envelope (Optional) | | Min.85x85mm | | Pocket envelope (Optional) | | Min.90x90mm
Max.229x324mm | | Max.324x458mm
Wallet envelope | | Min.85x85mm | | Wallet envelope | | Min.90x90mm
Max.230x160mm | | Max.229x324mm
Tape Width | | 16-30mm | | 16-30mm
Machine Weight | | 2800kg | | 3200kg
Power | | 9kw | | 12kw
Machine Size | | 5500x1100x1300mm | | 6500x1250x1400mm
