HAOXING PRODUCT

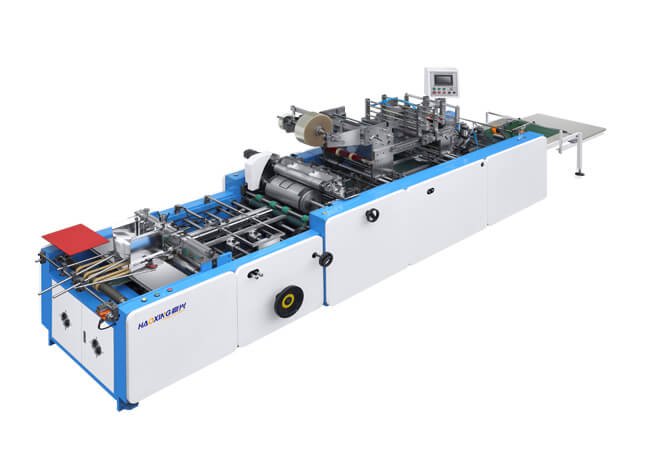

TC-650A Punch and Crease Window Patching Machine
Product Overview
Punch and Crease Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.
Key features
Punch and Crease Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.
Technical Specifications
Model | | TC-650A
Paper Gsm | | 200-1000 gsm
Capacity | | 6000 pcs/hour
Paper Size | | Min.170x150mm
Max.560x650mm
Window Size | | Min.45x50mm
Max.380x260mm
Accuracy | | ±0.5mm
Film Thickness | | 0.05-0.25mm
Total Power | | 8kw
Machine Weight | | 3000kg
Machine Size | | 6500x1200x1600mm
